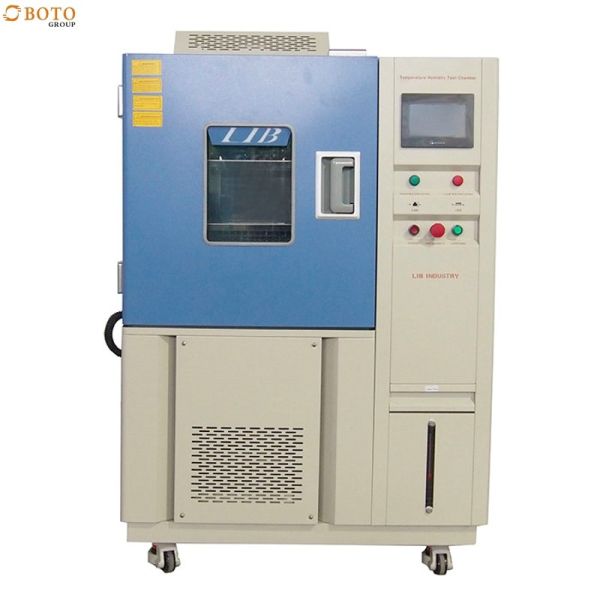

Temperature Humidity Test Chamber High Low Temperature Chamber

Name: Temperature Humidity Test Chamber High Low Temperature Chamber
Brand: BOTO
Price: 1 USD

China Temperature Humidity Test Chamber High Low Temperature Chamber wholesale

Brand Name : BOTO

Model Number : BL-TH-100

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1-25 days,to be negotiated

Packaging Details : wooden case

Internal Dimension (mm) : 400*500*500

Overall Dimension (mm) : 860*1050*1620

Interior Volume : 100L

Heat load : 1000w

Temperature Range : A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃

Temperature Fluctuation : ± 0.5 ℃

Temperature Deviation : ± 2.0 ℃

Humidity Range : 20% ~ 98% RH

Humidity Deviation : ± 2.5% RH

Cooling Rate : 1 ℃ / min

Heating Rate : 3 ℃ / min

Refrigerant : R404A, R23

Heating Element : Nichrome heater

Controller : Programmable color LCD touch screen controller

Humidifier : External isolation, stainless steel surface evaporation humidifier

Temperature Sensor : PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃

Dehumidification : Evaporator

Humidity Sensor : Dry and wet bulb sensor

Exterior Material : Steel Plate with protective coating

Interior Material : SUS304 stainless steel

Standard Configuration : 1 Cable hole (Φ 50,) with plug; 2 shelves

Maximum Noise : 65 dBA

Contact Now

Temperature Humidity Test Chamber High Low Temperature Chamber

Description

Temperature Humidity Test Chamber to perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.Suitable for small test pieces and large pieces.Standard:JIS C8990,IEC61730-2,IEC61215/IEC61646/ IEC61701/ IEC 61370...

Technical Parameters
  	 			Name
 			Temperature Humidity Test Chamber High Low Temperature Chamber Climate Chamber

 			Model
 			BL-TH-100
 			BL-TH-225

 			Internal Dimension (mm)
 			400*500*500
 			500*600*750

 			Overall Dimension (mm)
 			860*1050*1620
 			960*1150*1860

 			Interior Volume
 			100L
 			225L

 			Heat load
 			1000w

 			Temperature Range
 			A : -20℃ ～ +150 ℃  B : -40℃ ～ +150 ℃  C: -70℃ ～ +150 ℃

 			Temperature Fluctuation
 			± 0.5 ℃

 			Temperature Deviation
 			± 2.0 ℃

 			Humidity Range
 			20% ~ 98% RH

 			Humidity Deviation
 			± 2.5% RH

 			Cooling Rate
 			1 ℃ / min

 			Heating Rate
 			3 ℃ / min

 			Refrigerant
 			R404A, R23

 			Heating Element
 			Nichrome heater

 			Controller
 			Programmable color LCD touch screen controller


 			Ethernet connection, PC Link

 			Humidifier
 			External isolation, stainless steel surface evaporation humidifier

 			Dehumidification
 			Evaporator

 			Temperature Sensor
 			PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃

 			Humidity Sensor
 			Dry and wet bulb sensor

 			Exterior Material
 			Steel Plate with protective coating

 			Interior Material
 			SUS304 stainless steel

 			Standard Configuration
 			1 Cable hole (Φ 50,) with plug; 2 shelves

 			Power Supply
 			220V 50Hz / 380V 50Hz

 			Maximum Noise
 			65 dBA

 			Environmental Conditional
 			5℃～+35 ℃ ≤85% RH


 Detail Design

 Test Area
1.SUS304 stainless steel 2.Internal Dimension:50L and 80L 3.Rust-proof to high and low temperature and moisture corrosion; 4.Adjustable sample shelves, facilitate the various sizes of test samples.
 Cable Hole
1.Inner hole diameter is 50mm. 2.Convenient for the cable to pass through,and provide power for the test piece 3.Reliably Sealing 4.Customizable test hole size
 Controller
1.PID programmable color touch screen controller 2.Can be network connection computer 3.Can edit 100 programs 100 segments 4.Multiple languages are available

Option
 Controller
■WiFi connection ■Mobile APP control ■Multi-language controller interface:Russian, French, Polish, Romanian, German
 Observation Window
■Size can be customized ■Inner glass door ■Hand-in ports
 Demineralized Water Device
■Remove impurities from water■Automatic type



 Advantage
1.Multiple model:TH-100,TH-225,TH-500,TH-800,TH-1000 2.Testing small and large test pieces,Can be powered 2.Low types: -20℃/-40℃/-60℃/-70℃/-86℃ 3.Free calibration 4. *72 hours commissioning before delivery to ensure product performance

Applications
Temperature Humidity Test Chamber widely used: ◆electronics ◆automotive ◆manufacturing ◆research ◆laboratories ◆LED light ◆lithium battery ◆solar ◆cell ◆electronic ◆pcb ◆drug◆rubber ◆cosmetics ◆metalware ◆ceramics ◆cable ◆glass◆concrete ◆coating ◆plastic ◆so on

Castom-made
 Walk in Test Chamber
Walk in temperature and humidity test chamber, customers used to test large packing boxes, and customized special turntable
 UV Test Chamber (Glass Test)
Special custom UV test chamber, mainly used to test glass, equipment design on both sides of the test area and special sample rack
 No Housing IPX1X2 Rain Equipment
No housing rain test chamber can test the water resistance of the larger shell, we support custom IPX1 to IPX9K laboratory

Shipping1.Packed with export standard wooden case.​ 2.Strong packages can be used for sea, air, railway, truck transport and multimodal
 transport.
3.Transport equipment to ports or laboratories according to your needs.
